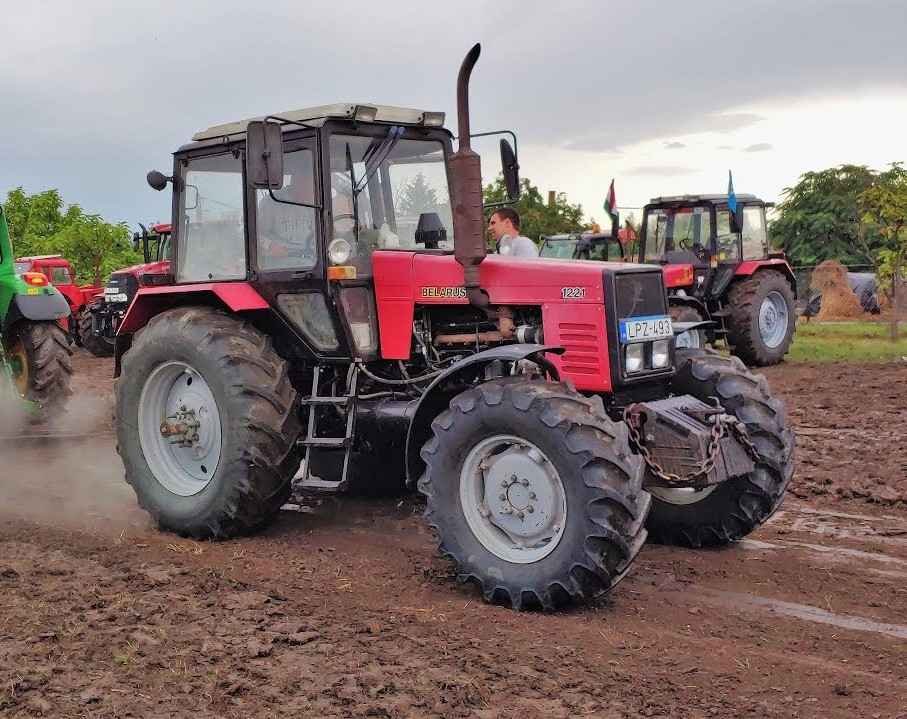

Belarus 1221 Workshop Factory Repair Manual
$49.99
✅ Engine Type: Diesel, 4-stroke, turbocharged
✅ Engine Model: D-260.2
✅ Number of Cylinders: 6
Belarus 1221 Factory Workshop Repair Manual
Technical characteristics
Motor
Diesel type in line with turbo super compresión, with direct fuel injection
Capacity, kW (hp) 90.4 (122.9)
Model D-260.2
Fercuencia nominal rotating crankshaft, rev / min 2100
Number of cylinders, Zimmer 6
Operating volume, l 7,12
Reserve factor torque,% 15
Maximum torque, N m 500
Diameter cylinder / piston step, 110 x 125 mm
Fuel tank capacity, l 140
Belarus 1221 Factory Workshop Repair Manual
Transmission
Dry clutch sleeve, two discs, constantly closed
A mechanical, synchronized, stepped speeds
Switching synchronized transmissions with sleeves
Number of transmissions forward / reverse 16/8
Scrolling speed, km / h
✅ Model: Belarus 1221
✅ Displacement: 7.12 liters (7120 cc)
✅ Rated Power: 130 hp (97 kW)
✅ Rated RPM: 2100 rpm
✅ Cooling System: Liquid-cooled
✅ Fuel System: Direct injection
✅ Starting System: Electric start
