235, 260,290,315,340,370 cvt

Engine Specifications:

• Engine: FPT Cursor 8.7L 6-cylinder Turbocharged Diesel
• Horsepower: Magnum 235 (235 hp), Magnum 260 (260 hp), Magnum 290 (290 hp)
• Displacement: 8.7 liters
• Oil Capacity: Approx. 16 quarts (varies by model)
• Coolant Capacity: Varies by model, check owner’s manual

Transmission and Hydraulic Specifications:

• Transmission: Full Powershift or CVT (Continuously Variable Transmission)
• Forward Gears: Varies by transmission type
• Reverse Gears: Varies by transmission type
• Hydraulic Pump Flow: Varies by model, typically around 40-60 GPM (gallons per minute)
• Hydraulic Remotes: Varies by model, typically 4-6 remotes available
• Rear Lift Capacity: Varies by model, typically around 14,000 – 18,000 lbs

Tire Specifications:

• Front Tires: Varies based on preference and application
• Rear Tires: Varies based on preference and application

Fuel Specifications:

• Fuel Capacity: Varies by model, typically around 200 – 250 gallons

Electrical System:

• Battery: Varies by model, typically 12V
• Alternator: Varies by model, typically around 150 – 200 amps

Solutions for those who want more results A series with incomparable performance. The world asks for more food and more energy. Modern agriculture demands more efficiency and better performance. The availability of working lands is increasingly scarce. The increase in productivity depends on high technology.

• Case IH Magnum 235
  Magnum 260
  Magnum 290
  Magnum 315
  Magnum 340
  Magnum 370
  (CVT)

Tractor service repair manual
PIN ZCRD02588 and above
English language 4772 pages printable searchable pdf format.

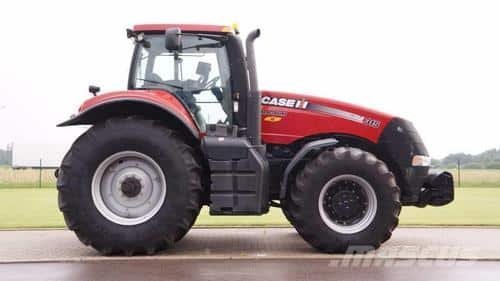

The new Magnum tractors arrive bringing more technology, more strength and more performance. The new series enters the field to meet the needs of power and productivity of the farmer. The Magnum’s high working capacity and simple operation transform these tractors into real machines of results.

The heaviest jobs and the traction of the most modern equipment are made in an agile and efficient way, with unparalleled performance. Therefore, the Magnum is the tractor that works as if it were a whole fleet. Know this new series that arrived to meet your needs in the field and profitability.
