Hitachi Zaxis ZX27U-2, ZX30U-2, ZX35U-2 Excavator Service Repair Manual

Model: Excavator ZX27U-2, ZX30U-2, ZX35U-2
Format: PDF
Language: English
For Model ZX27U-2, ZX30U-2, ZX35U-2 Service Manual consists of the following:

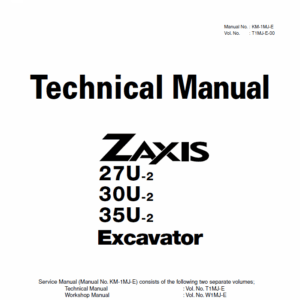

Service Manual : Vol. No. T1MJ-E

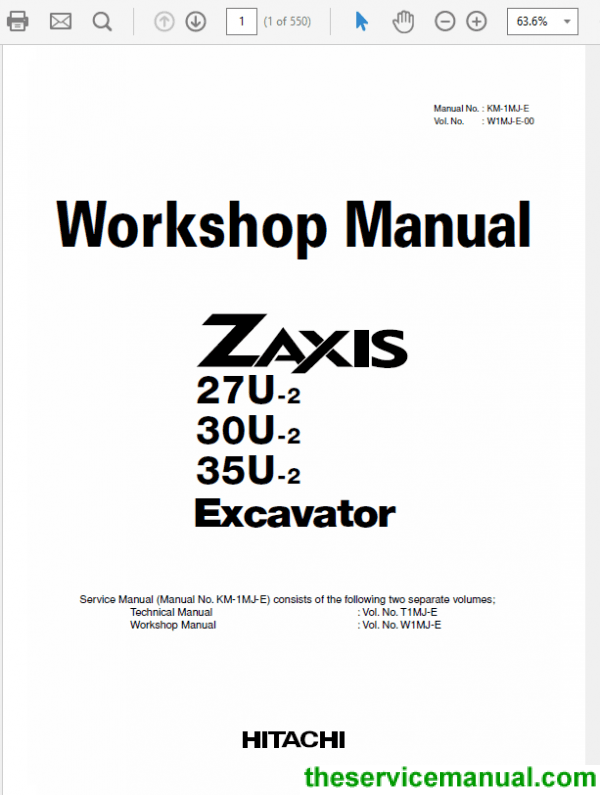

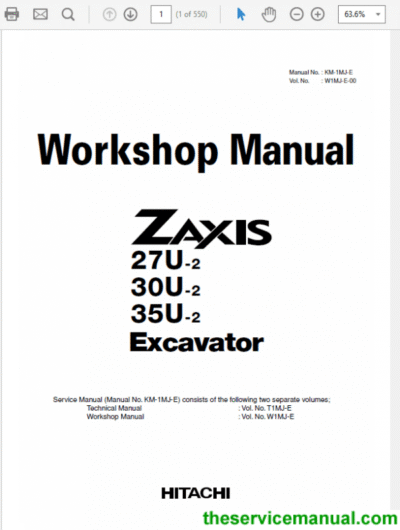

Workshop Manual : Vol. No. W1MJ-E

Hitachi ZX27U-2, ZX30U-2, ZX35U-2 Excavator Service Manual
Hitachi ZX27U-2, ZX30U-2, ZX35U-2 Excavator Service Manual
Parts Catalog for ZX30U-02 only

SI Units (International System of Units) are used in those manual.

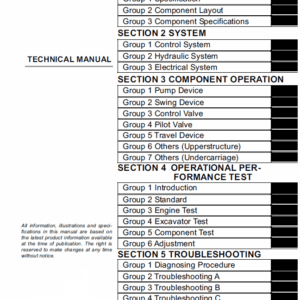

Manual Composition

The Hitachi ZX27U-2, ZX30U-2, ZX35U-2 manual consists of the Service Manual and the Workshop Manual.

• Information included in the Service Manual: Technical information needed for redelivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures.
• Information included in the Workshop Manual: Technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal / installation and assemble / disassemble procedures.

To avoid injury and damage, be sure to use appropriate lifting techniques and equipment when lifting heavy parts.

The Hitachi excavators ZX27U-2, ZX30U-2, ZX35U-2 has been built to deliver reliable performance with fewer emissions and less fuel. Less fuel consumption for owners, easier for operators and better for the environment, the ZX27U-2, ZX30U-2, ZX35U-2 incorporates the latest technologies made for the hydraulic, electric and capacitor-powered excavators.
