The Volvo EC13 XR XTV Excavator Service Manual is an indispensable guide for operators and technicians, providing comprehensive information for maintaining, troubleshooting, and repairing these compact excavators. Here’s a detailed look at what this service manual includes:

1. General Information

• Overview: Detailed specifications and descriptions of the Volvo EC13 XR XTV models, including engine type, dimensions, and performance metrics.
• Safety Instructions: Essential safety guidelines and precautions to ensure safe operation and maintenance of the excavator.

2. Routine Maintenance

• Scheduled Maintenance: Recommended maintenance schedules, including daily, weekly, and monthly checks to keep the excavator in optimal working condition.
• Fluids and Lubrication: Information on the types of fluids and lubricants required, along with procedures for checking and replacing them.

3. Engine

• Engine Components: Detailed diagrams and descriptions of engine components, including the fuel system, cooling system, and exhaust system.
• Troubleshooting and Repairs: Step-by-step instructions for diagnosing and repairing common engine issues, such as overheating, starting problems, and fuel system malfunctions.

4. Hydraulic System

• Hydraulic Components: Detailed diagrams and descriptions of the hydraulic system, including pumps, valves, and cylinders.
• Hydraulic Maintenance: Procedures for checking hydraulic fluid levels, replacing filters, and bleeding the hydraulic system.
• Hydraulic Repairs: Instructions for diagnosing and repairing hydraulic system issues, including leaks, pressure issues, and component failures.

Built to perform

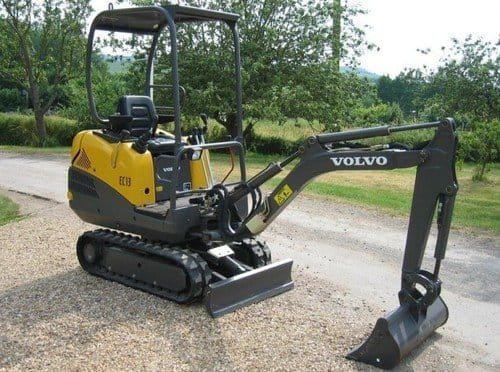

The Model EC13 has a lot of performance packed into a small frame. It features a breakout force of 1100 Dan. The bucket has a large radius of movement, preventing material from falling out. It’s available with a long or short arm, providing dig depths ranging from 2100 mm for the short arm to 2250 mm for the long arm.

Volvo EC13 XR Xtv Excavator Service Repair Manual Download

Operator friendly design
It’s also incredibly easy to operate, making it perfect for anyone who doesn’t run a compact excavator every day. There are two curved side joystick control levers for easy control and a loadsensing hydraulic circuit for smooth, independent movements. Volvo EC13 XR STV
The boom is offset, and the hydraulic lines are inside the pivot, boom, and dipper for an excellent view of the bucket.

Service
Maintenance
Adjusting
Repairs

Cooling system
Hydraulic system
Hydraulic circuits
Wiring diagrams
Power transmission
Lubricating system
Fuel system
Frame springs suspension

PDF format
Instant Download
It can be printed
Windows compatible
Mac compatible

Volvo EC13 XR Xtv Excavator Service Repair Pdf Manual
