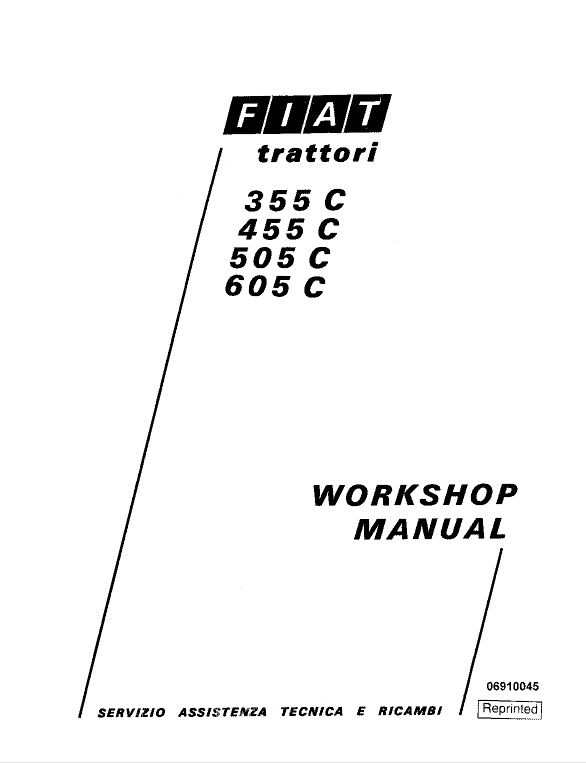

Fiat 355C, 455C, 505C, 605C Tractor Workshop Service Manual

Brand: Fiat Trattori

Equipment Type: Tractor

Equipment Model: 355C, 455C, 505C, 605C

Format: PDF

Language of the Manual: English

Publication: Heavy Equipment

Fiat 355C, 455C, 505C, 605C Tractor Workshop Service Manual: 210 Pages

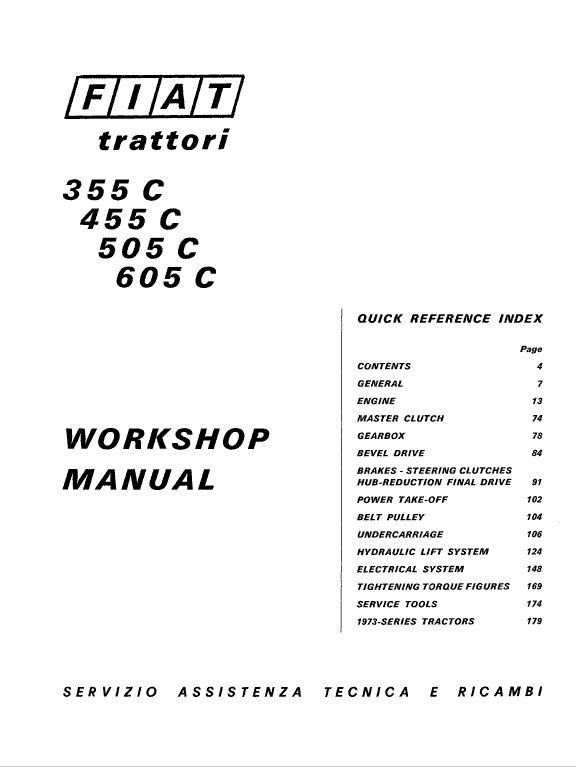

Table of Content of the 355C, 455C, 505C, 605C Tractors Manual:

CONTENTS

GENERAL

ENGINE

MASTER CLUTCH

GEARBOX

BEVEL DRIVE

BRAKES – STEERING CLUTCHES HUB-REDUCTION FINAL DRIVE

POWER TAKE-OFF

BELT PULLEY UNDERCARRIAGE

HYDRAULIC LIFT SYSTEM ELECTRICAL SYSTEM TIGHTENING TORQUE FIGURES SERVICE TOOLS

1973-SERIES TRACTORS

The manual is divided into separately numbered sections.

The sections identified by two digits (0 as second numeral) contain:

– Tractor specifications (00).

– Tractor sub-assembly specifications and data (10-Engine, 20-Power Train, etc.).

The sections identified by two digits (1 to 9 as second numeral) deal with the overhaul of the sub-assembles whose data are listed in the above sections. The first numeral is the same as the distinctive numeral of the associated data section;is (e.g. 20 – Power Train;. then 22 – Clutch; 23 – Transmission, splitter etc.).

• A contents list is provided to facilitate retrieval of desired information.

The Fiat Service Manual provides you with all the technical specification and information needed for you to properly service the Fiat Tractor 355C, 455C, 505C, 605C. By using this repair service manual in addition to your operators manual supplied, you should be able to correctly service and maintain your tractor.

The manual describes the procedures of removal, disassembly, reassembly, troubleshooting, maintenance that have been found to be the easiest and least time consuming way to fix any issues with your tractor. There may be several other ways of completing the same job, but it has been established that the described methods are the best. Any diversion to these procedures mentioned in this manual are your own decisions.
