Hino 145, 165, 185, 238, 258LP, 268, 308, 338 Series Year 2009 Repair Manual

Hino 145, 165, 185, 238, 258LP, 268, 308, 338 Series Year 2009 Repair Manual

This is the Repair and Service Manual for Hino Truck 2009

Series: 145 (NA6J), 165 (NB6J), 185 (NC6J), 238 (ND8J), 258 (ND8J, NJ8J)), 268 (NE8J, NJ8J), 308 (NF8J) and 338 (NV8J) with J05D-TF, J08E-TV and J08E-TW engine

Format: PDF

Language: English

• Hino 2009 Truck Manual for 145, 165, 185, 238, 258LP, 268 and 338 Series – 1263 Pages
• Hino 2009 Owners Manual – 316 Pages
• Hino J05D-TF Engine Manual – 396 Pages
• Hino J08E-TV and J08E-TW Engine Manual – 424 Pages

This workshop manual has been prepared to provide information covering repairs on 145, 165, 185, 238, 258LP, 268 and 338 series Hino 2009 trucks.

To use Hino 2009 trucks for years, smoothly, safely, and economically without trouble, it is important to perform inspections.

Maintenance required to be performed is the responsibility of the owner. Some recommended repairs of your truck are mentioned. When making any repair of your truck, be careful not to be injured through improper procedures.

As for maintenance items, refer to the Owners and Drivers Manual. All information and specifications in this manual are based upon the latest product information available at the time of printing.

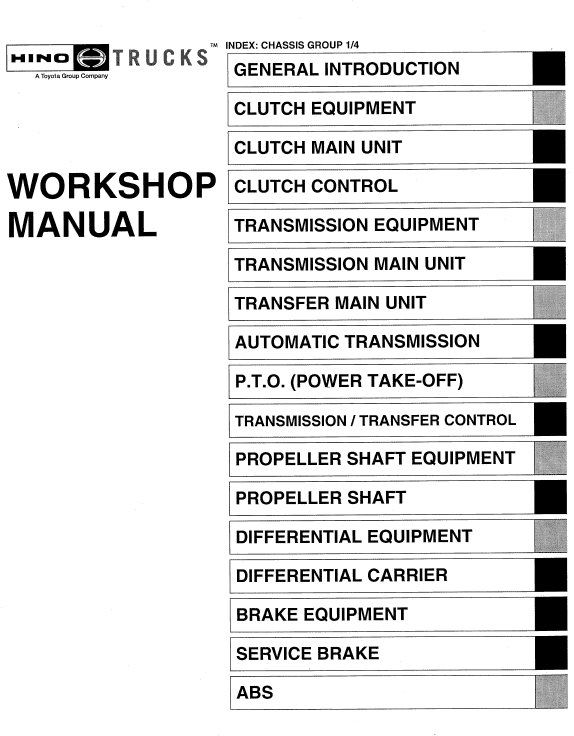

Table of Content For Hino 2009 Truck Manual:

General Introduction

Clutch Equipment

Clutch Main Unit

Clutch Control

Transmission Equipment

Transmission Main Unit

Transfer Main Unit

Automatic Transmission

P.t.o. (Power Take-off)

Transmission / Transfer Control

Propeller Shaft

Differential Equipment

Differential Carrier

Index: Chassis Group 1/4

Propeller Shaft Equipment

Brake Equipment

Service Brake

Abs & Asr

Es Start (Easy & Smooth Start) System

Exhaust Brake

Retarder Brake

Parking Brake

Steering Equipment

Steering Unit

Power Steering

Axle Equipment

Front Axle

Rear Axle

Wheel & Tire

Suspension Equipment

Suspension

Chassis Equipment

Chassis Frame

Coupler (5th Wheel)

Pintle Hook
