John Deere 643K Feller Buncher Harvester Operation and Test Manual

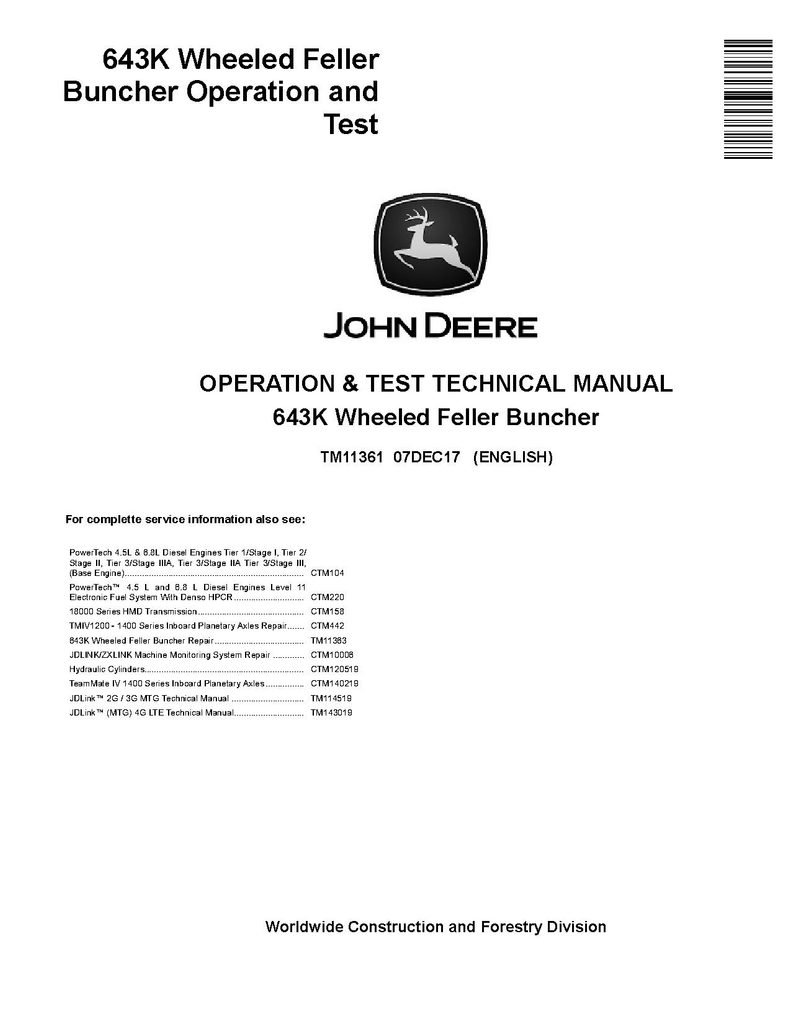

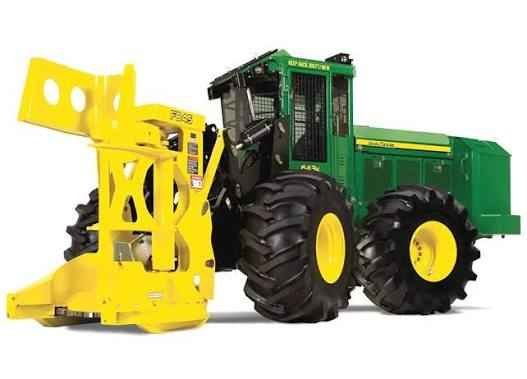

John Deere 643K Feller Buncher Harvester Operation and Test Manual – (TM11361)

The John Deere 643K Feller Buncher Harvester Operation and Test Manual provides detailed technical information for diagnosing, testing, troubleshooting, and evaluating the operating systems of the John Deere 643K forestry machine. This manual is designed for professional forestry equipment technicians and mechanics performing system diagnostics, operational checks, and technical service procedures.

Manual Specifications

• Brand: John Deere
• Model: 643K
• Equipment Type: Feller Buncher / Forestry Harvester
• Manual Type: Operation and Test Manual
• Language: English
• Format: PDF

John Deere 643K Wheeled Feller Buncher Service Manual

Operation, Diagnostics & Testing Information

The John Deere 643K Operation and Test Manual provides technical information and diagnostic procedures for major machine systems, including:

• General machine information and specifications
• Operational checks and system tests
• Diagnostic procedures and troubleshooting
• Diagnostic trouble codes (DTCs)
• Engine performance and control diagnostics
• Fuel, air intake, and cooling system checks
• Electrical system diagnostics
• Starting and charging system tests
• Wiring and electrical component information
• Hydraulic system diagnosis and testing
• Hydraulic pressures and system checks
• Pumps, valves, motors, and cylinders
• Propel and travel system diagnostics
• Steering and machine control systems
• Boom and harvesting-function diagnostics
• Operator controls and monitoring systems
• Sensors, switches, and electronic controls
• Test procedures and system adjustments
• Technical specifications and diagnostic data

OPERATION AND TEST MANUAL

SECTION 9000 – GENERAL INFORMATION
01 – Safety

SECTION 9001 – DIAGNOSTICS
10 – Engine Control Unit (ECU) Diagnostic Trouble Codes
20 – Standard Display Monitor (SDM) Diagnostic Trouble Codes

SECTION 9005 – OPERATIONAL CHECKOUT PROCEDURE
10 – Operational Checkout Procedure

SECTION 9010 – ENGINE
05 – Theory of Operation
15 – Diagnostic Information
25 – Tests

SECTION 9015 – ELECTRICAL SYSTEM
05 – System Information
10 – System Diagrams
15 – Sub-System Diagnostics
16 – Monitor Operation
20 – References

SECTION 9020 – POWER TRAIN
05 – Theory of Operation
15 – Diagnostic Information
20 – Adjustments
25 – Tests

SECTION 9025 – HYDRAULIC SYSTEM
05 – Theory of Operation
15 – Diagnostic Information
25 – Tests

SECTION 9031 – HEATING AND AIR CONDITIONING
05 – Theory of Operation
15 – Diagnostic Information
25 – Tests
