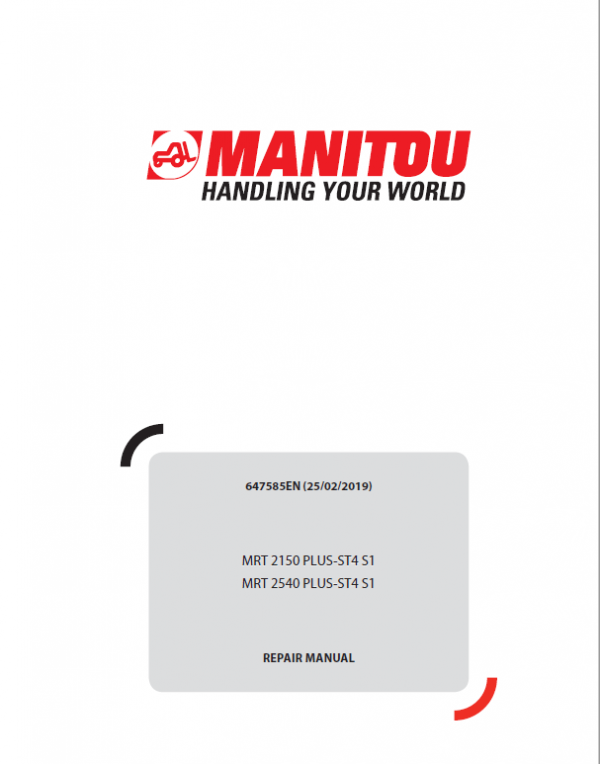

Manitou MRT 2150, 2540 Privilege Plus ST4 S1 Telehandler Repair Service Manual

Manitou MRT 2150, 2540 Privilege Plus ST4 S1 Telehandler Repair Service Manual

Format: PDF
Language: English
Telehandler Applicable Model:
MRT 2150 PLUS-ST4 S1
MRT 2540 PLUS-ST4 S1

• Manitou MRT 2150, 2540 Privilege Plus ST4 S1 Telehandler Repair Service Manual – 1773 Pages
• Manitou MRT 2540 PLUS-ST4 S1 Part Catalog – 614 Pages
• Manitou Dana Axle Type 213 Repair Manual – 116 Pages
• Manitou Air Heater (Airtronic/Airtronic M) Manual – 70 Pages
• Manitou HydroStatic Pump H1 069 TO 165 Manual – 70 Pages
• Manitou Transfer Box Type 357 Manual – 52 Pages

Table of content of the Repair Manual:

• GENERAL
• ENGINE
• TRANSMISSION
• AXLE
• BRAKE
• BOOM
• HYDRAULIC
• ELECTRICITY
• DRIVER’S CAB
• FRAME – BODY
• OPTIONS – ATTACHMENTS

The manufacturer cannot predict all possible risky situations. Consequently, the safety instructions given in the safety manual are not exhaustive. At any time, as an operator, you must envisage, within reason, the possible risk to yourself, to others or
to the lift truck itself when you repair, service or drive it.

The efficiency and continued operation of mechanical units depend on constant, correct maintenance and also on efficient repair work, should there be a break-down or malfunction. The instructions contained in this MRT 2150, 2540 Privilege Plus ST4 S1 Telehandler repair manual have been based on a complete overhaul of the unit. However, it is up to the mechanic to decide whether or not it is necessary to assemble only individual components, when partial repair work is needed. The manual provides a quick and sure guide which, with the use of photographs and diagrams illustrating the various phases of the operations, allows accurate work to be performed.

The official diagnostic and maintenance manual is an indispensable tool for maintaining your machine’s efficiency and reliability. It includes in-depth technical data for every system—engine, hydraulic, electrical, and transmission. Using this guide, you can quickly diagnose issues, perform regular inspections, and restore your equipment to factory specifications.

Clear diagrams, maintenance schedules, and fault codes simplify even the most complex repairs. Perfect for operators and professional technicians, this manual ensures safety, precision, and performance in every maintenance task.

Manitou MRT 2150, 2540 Privilege Plus ST4 S1 Telehandler Repair Service Manual
