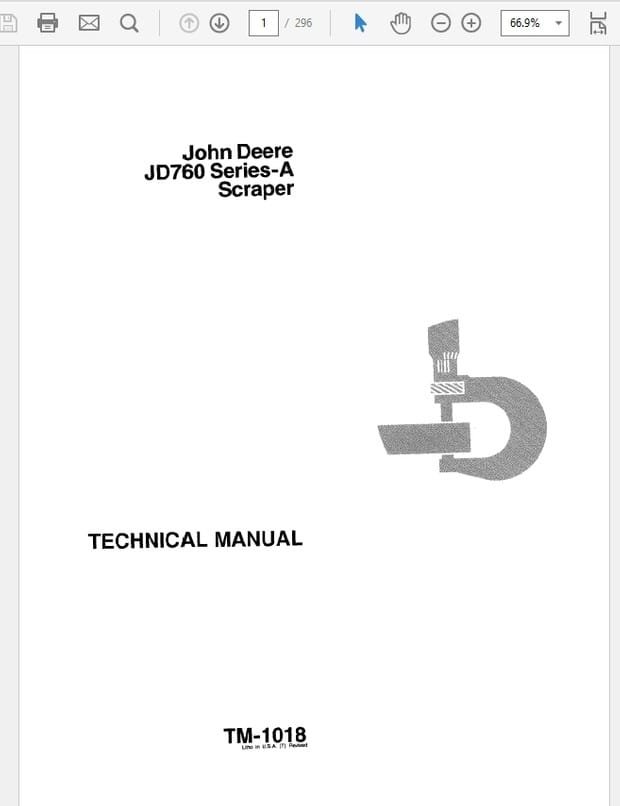

(tm1018)

The John Deere JD760 Series A scraper uses a mechanical braking system to control the brakes. Here is some technical information about the brake control system:

Brake Pedal: The brake pedal Jd760 is located in the operator’s compartment. When the operator depresses the brake pedal, it activates the brake control system.
Mechanical Linkage: The Jd760 brake pedal is connected to a mechanical linkage that transfers the force to the brake control mechanism. This linkage is responsible for transmitting the operator’s input to the brakes.
Brake Control Mechanism: The brake control mechanism converts the force from the mechanical linkage into braking action. It is typically located near the rear axle of the scraper.
Brake Drums and Shoes: The braking system in the JD760 Series A scraper uses brake drums and shoes. When the brake control mechanism is engaged, it applies the brake shoes against the brake drum to create friction and slow down or stop the scraper.
Adjustment: The brake control system requires periodic adjustment to maintain optimal performance. This involves adjusting the brake shoe clearance to ensure proper contact with the brake drum.

John Deere Jd760 Scrapers Technical Manual

Maintenance: Jd760 Regular maintenance of the brake control system is important for safe and efficient operation. This includes inspecting the brake components for wear, replacing worn brake shoes, and lubricating the mechanical linkage and pivot points as recommended by the manufacturer.
Safety Features: The JD760 Series A scraper may also have additional safety features related to the braking system, such as an emergency brake or a parking brake. These features are designed to provide additional control and safety in specific situations.

It’s important to note that while this information provides a general overview of the brake control system in the JD760 Series A scraper, the specific details and components may vary depending on the scraper’s model year and configuration. For precise information and instructions, refer to the operator’s manual or consult with a John Deere dealer or authorized service center.
