Bobcat 2100 and 2100s Utility Vehicle Service Manual

Bobcat 2100 and 2100s Utility Vehicle Service Manual

Bobcat Service Manual

These service manual contains all the information required to assist you or a trained service engineers with all work, repairs and maintenance on this Utility Vehicle.

Language English, Format: PDF

Bobcat 2100 Utility Vehicle:

Wiring and Hydraulic Schematics included for all S/N

Service Manual
Operation and Maintenance Manual S/N 522713000 AND ABOVE
Operation and Maintenance Manual

CONTENTS:

• SECTION_1 SAFETY
• SECTION_2 VEHICLE SPECIFICATIONS
• SECTION_3 GENERAL INFORMATION
• SECTION_4 BODY AND TRIM
• SECTION_5 ACCELERATOR AND BRAKE PEDAL ASSEMBLIES
• SECTION_6 MC012C-AS00 TRANSAXLE: HYDRAULIC AND PARK BRAKE SYSTEMS

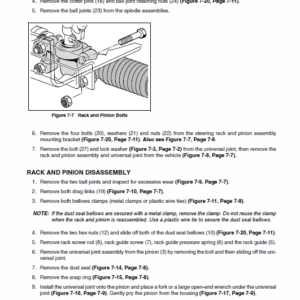

• SECTION_7 STEERING AND FRONT SUSPENSION
• SECTION_8 WHEELS AND TIRES
• SECTION_9 REAR SUSPENSION
• SECTION_10 PERIODIC MAINTENANCE
• SECTION_11 TROUBLESHOOTING AND ELECTRICAL SYSTEM: FE400 ENGINE

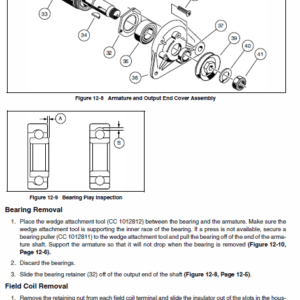

• SECTION_12 ELECTRICAL COMPONENTS: FE400 ENGINE
• SECTION_13 FE400 ENGINE
• SECTION_14 FUEL SYSTEM
• SECTION_15 EXHAUST SYSTEM
• SECTION_16 MC012C-AS00 UNITIZED TRANSAXLE WITH DIFFERENTIAL LOCK
• SECTION_17 TORQUE CONVERTER
• SECTION_18 RECONDITIONING THE FE400 ENGINE
• SECTION_19 RECONDITIONING THE MC012C-AS00 UNITIZED TRANSAXLE WITH DIFFERENTIAL LOCK
• SECTION i INDEX
