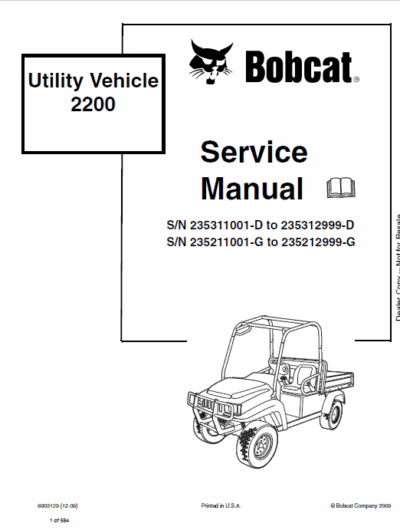

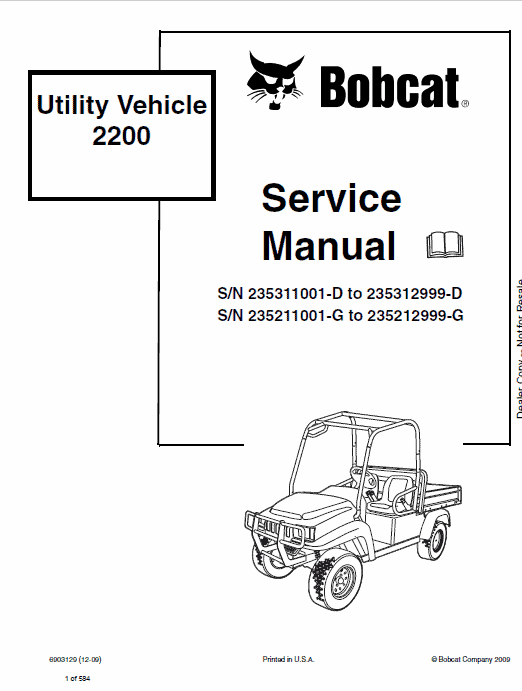

Bobcat 2200, 2200S, 2300 Utility Vehicle Service Manual

(G Series & D Series)

This service manual contains all the information required to assist you or a trained service engineers with all work, repairs and maintenance on this Utility Vehicle.

Language English
Format: PDF

S/N 235311001 to 235312999 (D-Series)
S/N 235211001 to 235212999 (G-Series)

S/N A59Z11001 & ABOVE (2200 DIESEL)
S/N A5KR11001 & ABOVE (2200 DIESEL) HOM.
S/N A59Y11001 & ABOVE (2200 GASOLINE)
S/N A5A111001 & ABOVE (2200S DIESEL)
S/N A5A011001 & ABOVE (2200S GASOLINE)
S/N A59W11001 & ABOVE (2300 DIESEL)

Bobcat 2200, 2200S, 2300 (G Series & D Series) Utility Vehicle Service Manual

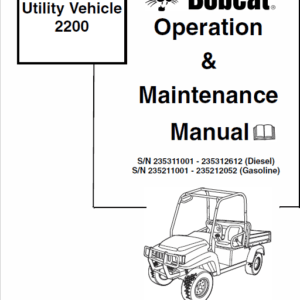

Bobcat 2200, 2200S, 2300 (G Series & D Series) Utility Vehicle Operating Manual

Wiring Electrical Schematics and Hydraulic Schematics are included in the Service Manual

CONTENTS:

SECTION_1 SAFETY
SECTION_2 VEHICLE SPECIFICATIONS
SECTION_3 GENERAL INFORMATION
SECTION_4 BODY AND TRIM
SECTION_5 ACCELERATOR AND BRAKE PEDAL ASSEMBLIES
SECTION_6 HYDRAULIC AND PARK BRAKE SYSTEMS
SECTION_7 STEERING AND FRONT SUSPENSION
SECTION_8 WHEELS AND TIRES
SECTION_9 REAR SUSPENSION
SECTION_10 PERIODIC MAINTENANCE
SECTION_11A TROUBLESHOOTING AND ELECTRICAL SYSTEM: GASOLINE VEHICLES
SECTION_11B TROUBLESHOOTING AND ELECTRICAL SYSTEM: DIESEL VEHICLES
SECTION_12A ELECTRICAL COMPONENTS: GASOLINE VEHICLES
SECTION_12B ELECTRICAL COMPONENTS: DIESEL VEHICLES
SECTION_13A GASOLINE ENGINE, MUFFLER, FUEL SYSTEM, AND CLUTCHES
SECTION_13B DIESEL ENGINE, MUFFLER, FUEL SYSTEM, AND CLUTCHES
SECTION_14 DRIVETRAIN COMPONENTS
SECTION_15 RADIATOR AND COOLANT SYSTEM (DIESEL)
SECTION_16 TRANSMISSION MODELS 420317 AND 420682
SECTION_17 FRONT DIFFERENTIAL MODELS 6203-01-139-S AND 6203-01-189-S
SECTION_18 REAR DIFFERENTIAL MODELS 420366 AND 420851
SECTION_19 KUBOTA D722 DIESEL ENGINE MANUAL
SECTION_20 HONDA GX 620 GASOLINE ENGINE MANUAL
SECTION i INDEX

Bobcat vehicles are designed and built to provide the ultimate in performance efficiency; however, proper maintenance and repair are essential for achieving maximum service life and continued safe and reliable
operation.

This manual provides detailed information for the maintenance and repair of the Bobcat 2200, 2200S, and Bobcat 2300 vehicles and should be thoroughly reviewed before servicing the vehicles.

The procedures provided must be properly implemented, and the DANGER, WARNING, and CAUTION statements
must be heeded.

This manual was written for the trained technician who already possesses knowledge and skills in electrical and mechanical repair. If the technician does not have such knowledge and skills, attempted service or repairs to the vehicle may render the vehicle unsafe. For this reason, Bobcat Company advises that all repairs and service be performed by an authorized Bobcat 2200 and 2200S distributor/dealer representative or by a Bobcat factory-trained technician.

It is the policy of Bobcat Company to assist its distributors and dealers in continually updating their service knowledge and facilities so they can provide prompt and efficient service for vehicle owners. Regional technical representatives, vehicle service seminars, periodic service bulletins, maintenance and service manuals, and other service publications also represent Bobcat Company’s continuing commitment to customer support.

This manual covers all aspects of typical vehicle service; however, unique situations sometimes occur when
servicing a vehicle. If it appears that a service question is not answered in this manual, you may write to Bobcat.
