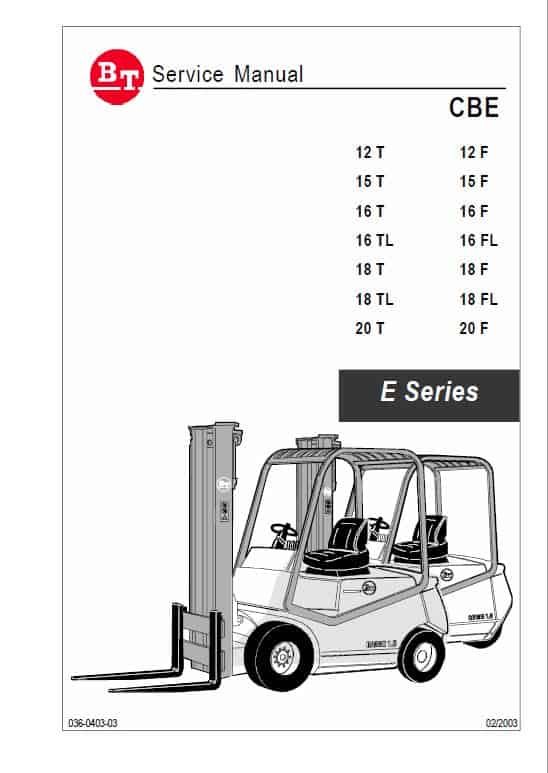

BT CBE 1.2T, CBE 1.5T, CBE 1.6T, CBE 1.6TL E Series Forklift Manual
ForkLift Model: CBE 1.2T, CBE 1.5T, CBE 1.6T, CBE 1.6TL
Publication: BT Forklift Service Manual
English 2003
Format: PDF
BT CBE 1.2T, CBE 1.5T, CBE 1.6T, CBE 1.6TL E Series Forklift Service Manual: 194 Pages & 104 Pages
Parts Manual: 1426 Pages

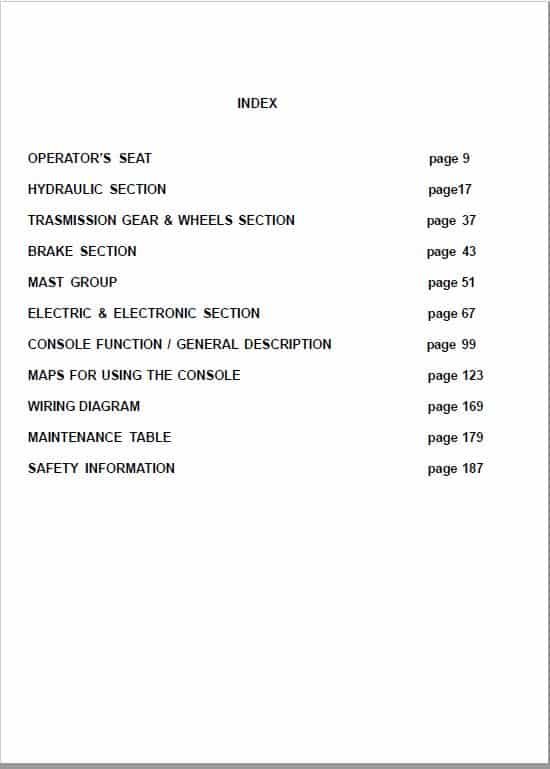

Forklift Manual Table of Content:
- OPERATOR’S SEAT
- HYDRAULIC
- TRANSMISSION GEAR & WHEELS
- BRAKE SECTION
- MAST GROUP
- ELECTRIC & ELECTRONIC
- CONSOLE FUNCTION / GENERAL DESCRIPTION
- MAPS FOR USING THE CONSOLE
- WIRING DIAGRAM
- MAINTENANCE TABLE
- SAFETY INFORMATION
These service instructions cover descriptions for dismantling and assembling the gear, filling/changing the oil and measures in the event of leakage. Complete overhaul of the gear is such an extensive piece of work that it should be carried out in a workshop by specially trained personnel.
Setting selector: at the truck start up the default settingis P (programmable); H (high) or L (low) settings can be selected pulling the push button several times. On the dashboard, three leds, as indicated at page 14 paragraph 11, will show the selected condition.
P: – Maximum drive speed.
– Acceleration and braking action are optimised for low energy consumption.
– Parameter change function enabled.
The official diagnostic and maintenance manual is an indispensable tool for maintaining your machine’s efficiency and reliability. It includes in-depth technical data for every system—engine, hydraulic, electrical, and transmission.
Using this guide, you can quickly diagnose issues, perform regular inspections, and restore your equipment to factory specifications. Clear diagrams, maintenance schedules, and fault codes simplify even the most complex repairs. Perfect for operators and professional technicians, this manual ensures safety, precision, and performance in every maintenance task.
