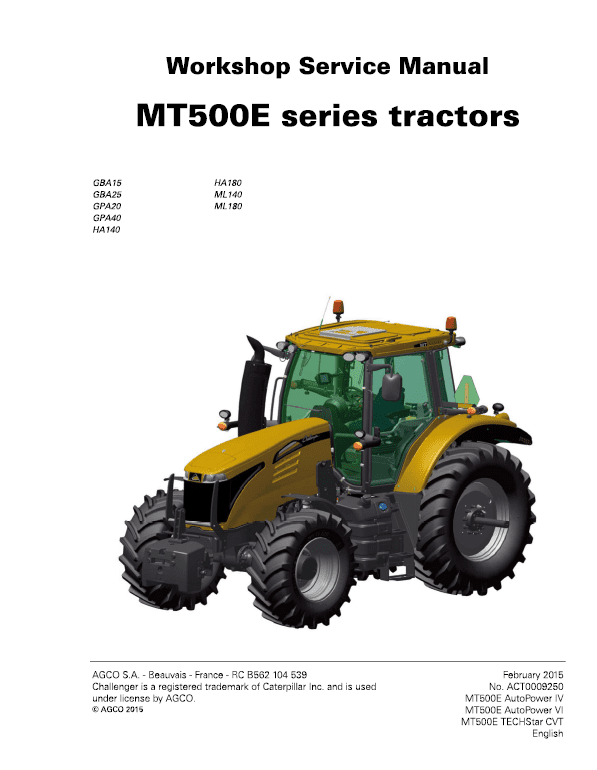

Challenger MT515E, MT525E, MT535E, MT545E Tractor Repair Workshop Manual
Manual for: AGCO Challenger
MT500E AutoPower IV Series
MT500E AutoPower VI Series
MT500E TechStar CVT Series
North America – English
Format: PDF
February 2015
No. ACT0009250
Challenger MT515E, MT525E, MT535E, MT545E Tractor Workshop Manual : 3455 Pages

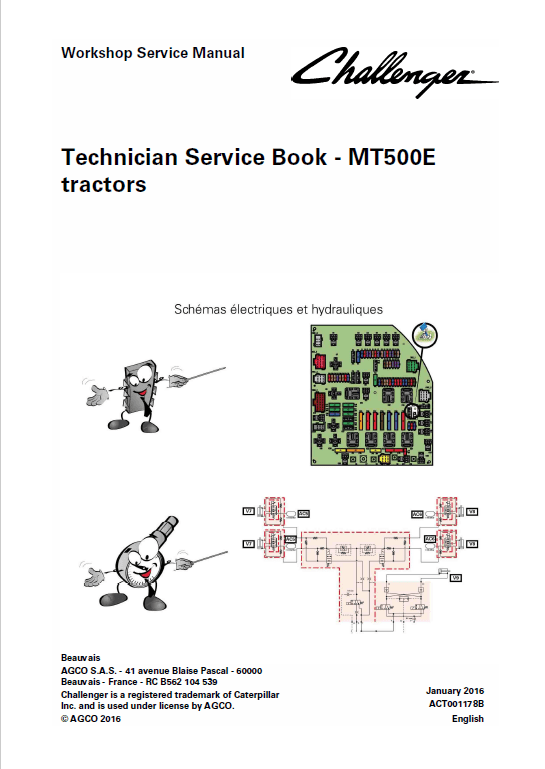

Technician Service Book MT500E (Schematics and Electronics) : 814Pages
Parts Catalog MT500E AutoPower VI, TechStar CVT: 366 Pages & 424 Pages
Challenger MT500E Series Manual TABLE OF CONTENTS
- Introduction
- Separation of assemblies
- Engine
- Clutch
- Gearbox
- Rear Axle
- Power Take off
- Front Axle
- Hydraulics
- Electricity
- Electronics
- Operator Environment
- Accessories
- Services Tools
MT515E, MT525E, MT535E, MT545E Manual Extract – Power Take off
The housing fitted to the rear of the “HA180” rear axle contains all the components of the rear PTO function.
The rear PTO can be divided into several sections: – The clutch
The clutch is located on the PTO upper shaftline and at the front of the PTO housing.
– The upper shaftline
The upper shaftline is equipped with a shaft and two gears which transmit the movement coming from the clutch to the driven gears.
– The lower shaftline
The lower shaftline receives the movement from the upper shaftline and transmits it to the implement via the intermediary of an output shaft.
The output shaft is fitted with an interchangeable end fitting which may be: – of varying length
– fitted with 6, 20 or 21 splines.
– The brake
This technical workshop manual delivers all the essential details for maintaining, servicing, and troubleshooting your equipment. It features clear illustrations, system schematics, and full repair procedures written by factory technicians. Every section—from engine rebuild to hydraulic testing—is carefully explained with professional precision.
By following the manufacturer’s recommended methods, you’ll reduce downtime and ensure your machine operates safely and efficiently. Ideal for maintenance professionals and heavy equipment owners who demand reliability, this manual is your trusted companion for every repair.
