Challenger MT835C, MT845C, MT855C, MT865C, MT875C Tractor Service Manual
Manual for: AGCO Challenger MT800C Series Tractor
Format: PDF
Book Number: 79033095 & AG333729B
English
Issued July, 2016
Challenger MT835C, MT845C, MT855C, MT865C, MT875C Tractor Workshop Manual : 2963 Pages
Challenger MT835C, MT845C, MT855C, MT865C, MT875C Tractor Repair Schedule Manual : 840 Pages

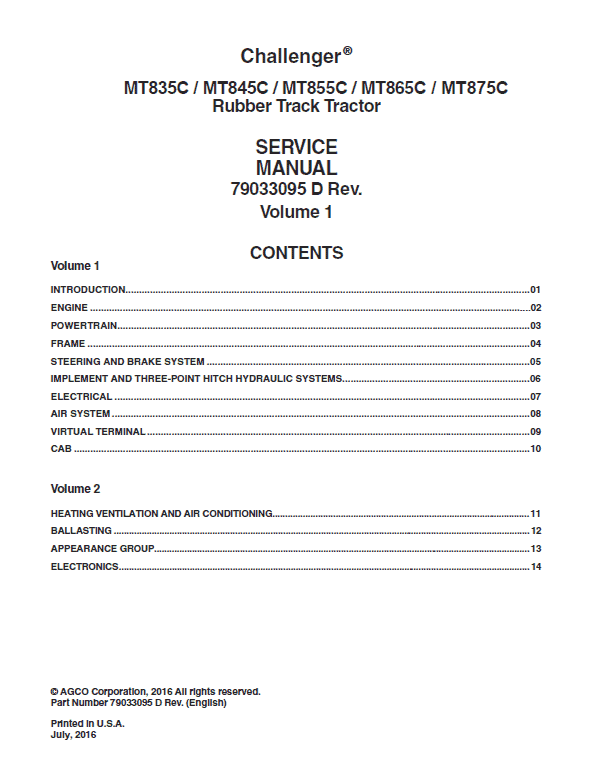

MT800C Series Manual TABLE OF CONTENTS
INTRODUCTION……………………………………………………………………………………………………………………………….01
ENGINE ……………………………………………………………………………………………………………………………………………02
POWERTRAIN……………………………………………………………………………………………………………………………………03
FRAME ……………………………………………………………………………………………………………………………………………..04
STEERING AND BRAKE SYSTEM ………………………………………………………………………………………………………05
IMPLEMENT AND THREE-POINT HITCH HYDRAULIC SYSTEMS………………………………………………………06

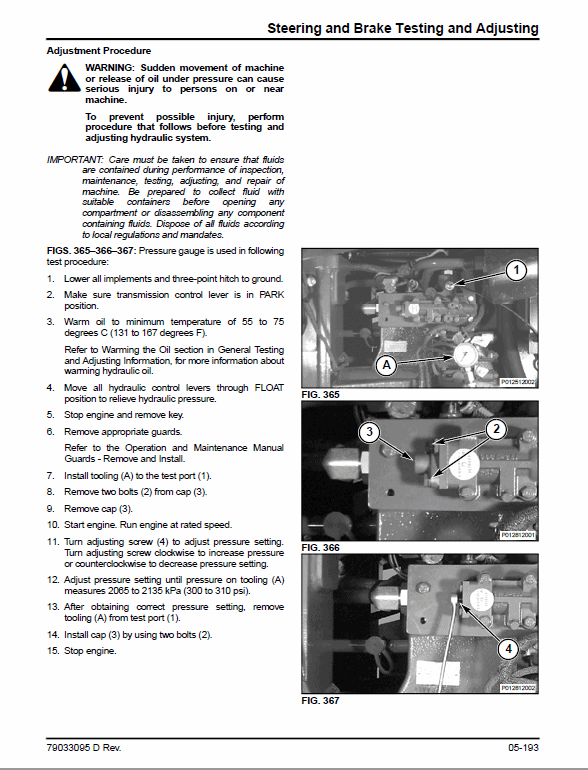

MT835C, MT845C, MT855C, MT865C, MT875C Manual Extract
VISUAL INSPECTION
Do not check for leaks with your hands. Pin hole (very small) leaks can result in a high velocity oil stream that will be invisible close to hose. This oil can penetrate skin and cause personal injury.
Use cardboard or paper to locate pin hole leaks.
WARNING: Sudden movement of machine or release of oil under pressure can cause serious injury to persons on or near machine.
To prevent possible injury, perform procedure that follows before testing and adjusting hydraulic system.
Use following procedure to perform a visual inspection.
1. Move machine to a smooth horizontal location.
2. Lower all implements to ground and lower three-point hitch to ground.
3. Make sure that transmission control lever is in Park position.
4. Warm oil to a minimum temperature of 60 degrees C (140 degreesF), if necessary.
5. Move all hydraulic control levers through Float position to relieve hydraulic pressure.
6. Stop engine and remove key.
7. Remove appropriate guards.
Perform following visual inspections.
1. Measure oil level.
2. Check for air in oil that is in sump. Check immediately after stopping machine. Check sight gauge at rear of machine next to PTO shaft. Check for air bubbles in sight gauge.
