John Deere T550 T560 T660 T670 Repair Manual
$199.99
John Deere T550 T560 T660 T670 Repair Manual
Illustrated Factory Service Repair Technical Manual for John Deere Combines Models W540, W550, W650, W660, T550, T560, T660, T670 with Wide Cab (International edition)
This manual contains high-quality images, instructions to help you to troubleshoot, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, cross-links for easy navigation.
This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.
Language: English
Format: PDF, 2044 pages
Covered models: ( MY2012-MY2013)
W540
W550
W650
W660
T550
T560
T660
T670
John Deere T550 T560 T660 T670 Repair Manual
TM404219 – John Deere W540, W550, W650, W660, T550, T560, T660, T670 Combines Repair Technical Manual
TM404119 : John Deere Service Repair Manual
Foreword
General Information
Safety
Specifications
General Repair Information
Fuel, Lubricants, Coolant, and Capacities
Engine
Remove and Install Engine
Cooling System
Fuel System and Air Intake System
Air Intake System
Diesel Fuel System
Electrical System
Harness and Connector Repair
Batteries
Wiring Harness Routing
Power Distribution and Location of Control Units
Switches, Sensors, and Motors
Electromagnetic Valves
Lights
Operator’s Station
Windshield Wiper
Alternator
Starting Motor
Green Star™ Components
Power Train
Transmission and Differential – Three-Speed Transmission
Hydrostatic System – Three-Speed Transmission

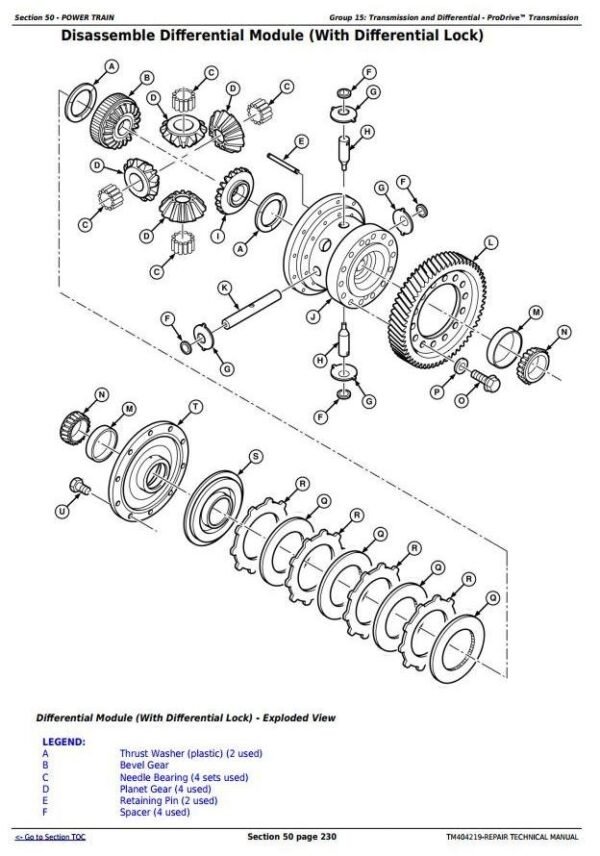

Transmission and Differential – Prod rive™ Transmission
Hydrostatic Drive Pump – Prod rive™ Transmission
Hydrostatic Drive Motor – Prod rive™ Transmission
Final Drives
Can Lobe Motor
Hill Master™ System
Steering and Brakes
Steering System
Brakes – Three-Speed Transmission
Brakes – Prod rive™ Transmission
Hydraulic System
Hydraulic Oil Reservoir
Hydraulic Pumps
Hydraulic Valves
Hydraulic Cylinders
Hill Master™ II Hydraulic Cylinders
Motor
Accumulators
Separator Shell
Gull Wing Doors
Operator’s Station
Air Conditioning System (R134a)
System Components
Operator’s Cab
Feeder House Repair
Feeder House
Upper Shaft and Slip Clutch
Feeder House Drives and Reverser Gear Case

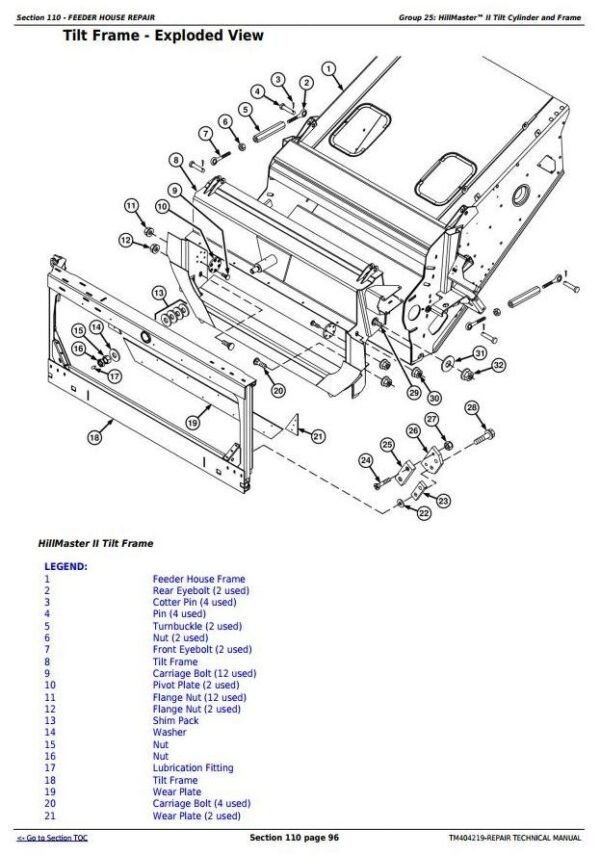

HeaderTrak™ Tilt Cylinder and Frame
Hill Master™ II Tilt Cylinder and Frame
Separator, W-Series Combines
Separator Repair
Beater (T Series)
Separator Rotor/Separator Grate (T Series)
Separator Grate (T Series)
Overshot Beater/Stripper (T Series)
Cylinder Drives
Walkers, Walker Shafts and Walker Return Pan
Straw Chopper and Chaff Spreader
Shoe Supply Augers, Cleaning Fan, Chaffer/Sieve Frame
Tailings Elevator and Augers
Tailings Elevator and Auger Slip Clutch (T Series)
Primary Countershaft
Header Electromagnetic Clutch
Grain Tank and Unloading System
Grain Tank Cross Augers
Auger System Drives
Vertical Auger and Lower Gear Case
Horizontal Auger and Gear Case
Clean Grain Elevator and Loading Auger Gear Case
Grain Tank and Extensions
Engine Gear Case and Control Valve
Engine Gear Case and Valve
Special Tools
Essential Special Tools
Recommended Special Tools
