Hitachi ZX40U-2, ZX50U-2 Excavator Service Repair Manual

Hitachi ZX40U-2, ZX50U-2 Excavator Service Repair Manual

Hitachi Excavator

Model: Excavator ZX40U-2 and ZX50U-2
Format: PDF
Language: English

Hitachi ZX40U-2, ZX50U-2 Excavator Service Repair Manual consists of the following:

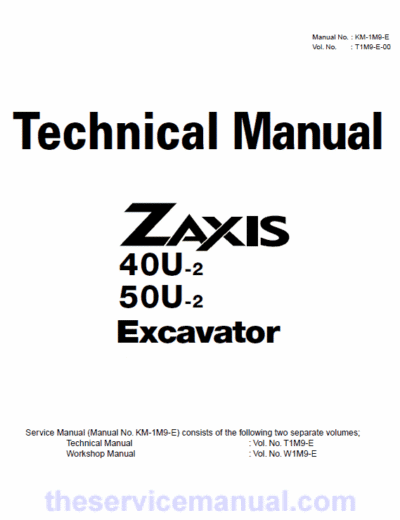

• Technical Manual : Vol. No.T1M9-EN
• Workshop Manual : Vol. No.W1M9-EN
• Engine Manual : Vol. No.KM-3TNV-E-00
• Operator’s Manual: Vol. No.EM1M7

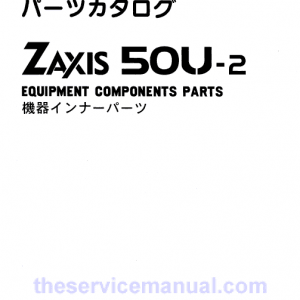

• Parts Catalog
• Electrical Circuit Diagram

SI Units (International System of Units) are used in those manual.

Manual Composition

The Hitachi ZX40U-2 and ZX50U-2 manual consists of the Service Manual and the Workshop Manual.

• Information included in the Service Manual: Technical information needed for redelivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures.
• Information included in the Workshop Manual: Technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal / installation and assemble / disassemble procedures.

To avoid injury and damage, be sure to use appropriate lifting techniques and equipment when lifting heavy parts.

ZAXIS 40U-2
ZAXIS 50U-2

The Hitachi excavators ZX40U-2 and ZX50U-2 has been built to deliver reliable performance with fewer emissions and less fuel. Less fuel consumption for owners, easier for operators and better for the environment, the ZX40U-2 and ZX50U-2 incorporates the latest technologies made for the hydraulic, electric and capacitor-powered excavators.
