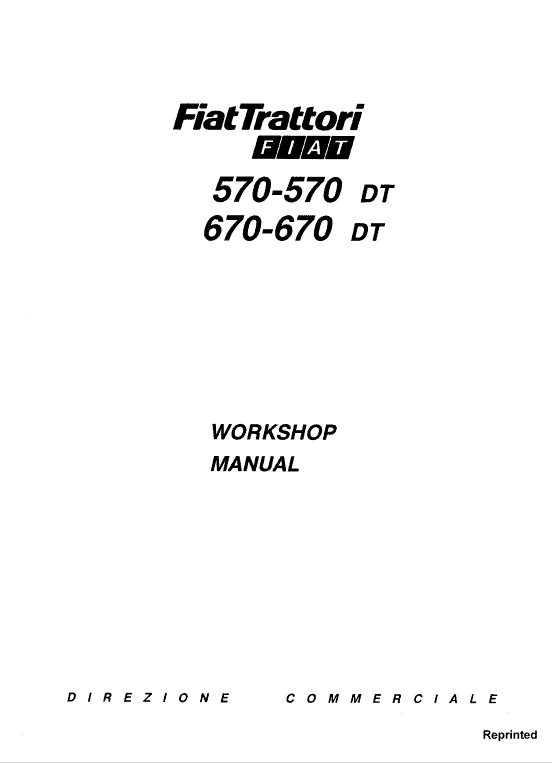

Fiat 570, 570DT, 670, 670DT Tractor Service Manual
Brand: Fiat Trattori
Equipment Type: Tractor 570, 570DT, 670, 670DT
Format: PDF
Language of the Manual: English
Publication: Heavy Equipment
Fiat Trattori tractor 570, 570DT, 670, 670DT Workshop Service Manual: 54 Pages
Table of Content of the 570, 570DT, 670, 670DT Tractors Manual:
General

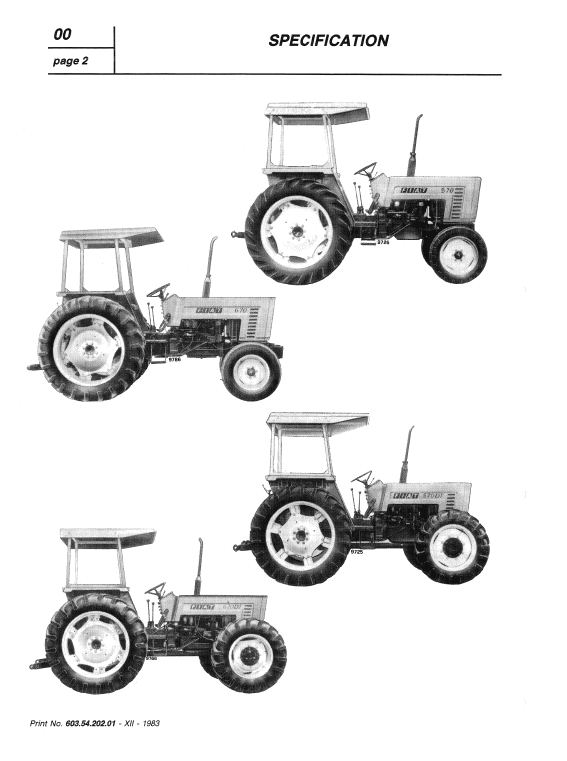

Specificaion
Engine
Power Train
Front Axle-Steering
Front Wheel Drive
Hydraulic Lift Unit
Electrical System
Service Tools
This official workshop manual provides the most accurate technical information available for your machine. Created by the original manufacturer, it covers complete service procedures, mechanical adjustments, and parts identification. Each chapter is organized for easy reference, offering exploded diagrams, torque specifications, and safety guidelines. Whether you’re troubleshooting hydraulic issues, replacing filters, or overhauling major components, this guide ensures you perform every task correctly.
Designed for both professionals and DIY owners, it includes practical maintenance tips that prevent costly breakdowns. Keep your loader, tractor, or excavator running smoothly with this essential workshop companion—your ultimate source for expert-level repair knowledge and manufacturer-approved service procedures.
The Fiat Service Manual provides you with all the technical specification and information needed for you to properly service the Fiat Tractor 570, 570DT, 670, 670DT. By using this repair service manual in addition to your operators manual supplied, you should be able to correctly service and maintain your tractor.
Manual Extract: Bevel Drive and Differential Adjustment
1. Bevel pinion bearing adjustment and shim thick-ness determination using special purpose tools (fig. c and d).
Place the bevel pinion bearing cones (7 and 9) and spacer (8) on tool (E) 293752.
Tighten nut (M) fully.
Measure the depth (H4) of the tool pin below the top face.
Dismantle, lubricate bearings with engine oil and reassemble on the tool, interposing the bevel drive carrier (10) with attached bearing cups.
Tighten nut (M) fully, simultaneously rotating the bevel drive case through 10 turns to settle the bearings.
