John Deere XUV 850D M-Gator Utility Vehicle Service Manual
John Deere XUV 850D M-Gator Utility Vehicle Service Manuals are concise service guides for a specific machine and are on-the-job guides containing only the vital information needed by a technician.
Model: John Deere XUV 850D (TM1737 & TM9152)
View all our M-Gator Utility Vehicle
Language: English & French
Format: PDF
M- Gator Service Technical Manual English

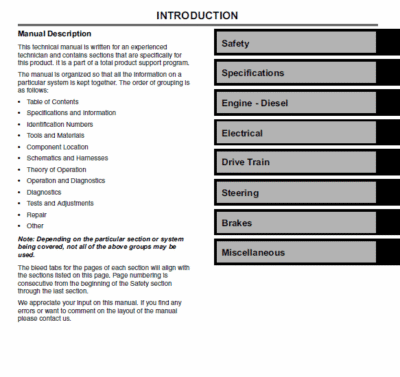

See pictures for the table of content.
Technical Manuals or Service Manuals for actual service
John Deere XUV 850D M-Gator Utility Vehicle Service Manuals are concise service guides for a specific machine and are on-the-job guides containing only the vital information needed by a technician.
This Service Manual includes repair and maintenance information, detailed description of service and troubleshoot procedures, installation instructions, special instructions, other additional information for John Deere Gator Utility Vehicle.
This manual includes illustrations like pictures and diagrams which you can help you determine the installation location spare parts, etc.
John Deere XUV 850D M-Gator Utility Vehicle Service Manual TM1737 Contents:
- Safety
- Specifications
- Engine – Diesel
- Electrical
- Power Train
- Steering
- Brakes
- Miscellaneous
John Deere XUV 850D M-Gator Utility Vehicle Service Manual
If you are interested in any other models of John Deere Service Manual click here.
See an extract of the M-Gator Engine Removal and Installation
1. Park machine safely. See “Park Machine Safely” in the Safety section.
2. Disconnect battery negative (-) cable.
3. Remove cargo box. See Cargo Box Removal and Installation on page 386 in the Miscellaneous section.
4. Turn the fuel shutoff valve to the off position.
5. Allow muffler to cool, or wear protective gloves before working on muffler. Remove muffler. See Muffler Removal
and Installation on page 58.
6. Remove clutch enclosure and drive belt of the M-Gator.
7. Remove clutch using JDG1641 clutch removal tool.
8. Drain cooling system and leave hoses disconnected until engine installation. See Radiator Drain Procedure on page 377.
9. Remove the spring pin (A) and disconnect the shift rod from the transmission.
10.Disconnect transmission neutral switch (B) and remove harness restrainer (C) from bracket.
11.Disconnect the differential lock cable (D) from the transmission.
12.Remove the three cap screws (E) and remove the cable mounting bracket from the transmission. Route the cables and mounting bracket away from the engine
View the complete instruction in the M-Gator Technical Manual now.
