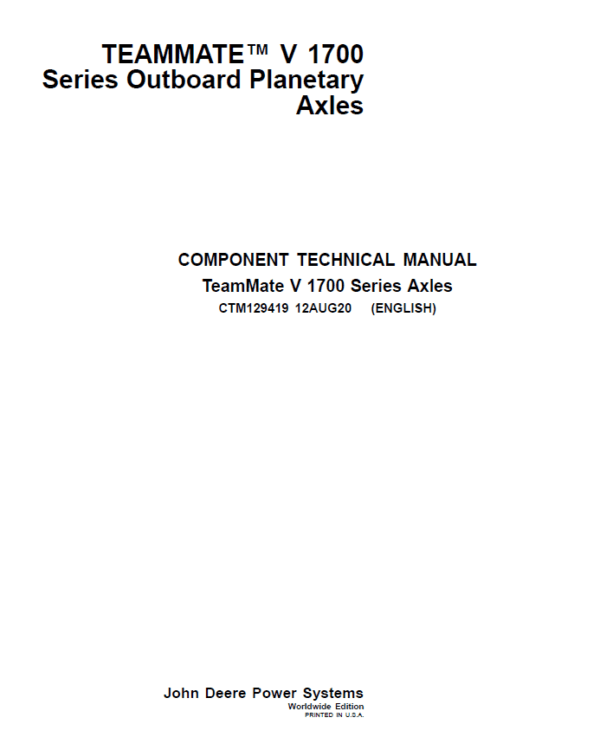

John Deere TeamMate V 1700 Series Outboard Planetary Axles Component Technical Manual
$63.00
Language: English
Format: PDF
Publication: CTM129419
- John Deere TeamMate V 1700 Series Outboard Planetary Axles Component Technical Manual – 200 Pages
John Deere TeamMate V 1700 Series Outboard Planetary Axles Component Technical Manual
This component technical manual covers the recommended repair procedure for the TeamMate V 1700 Series Outboard Planetary Axles.
Language: English
Format: PDF
Publication: CTM129419
- John Deere TeamMate V 1700 Series Outboard Planetary Axles Component Technical Manual – 200 Pages

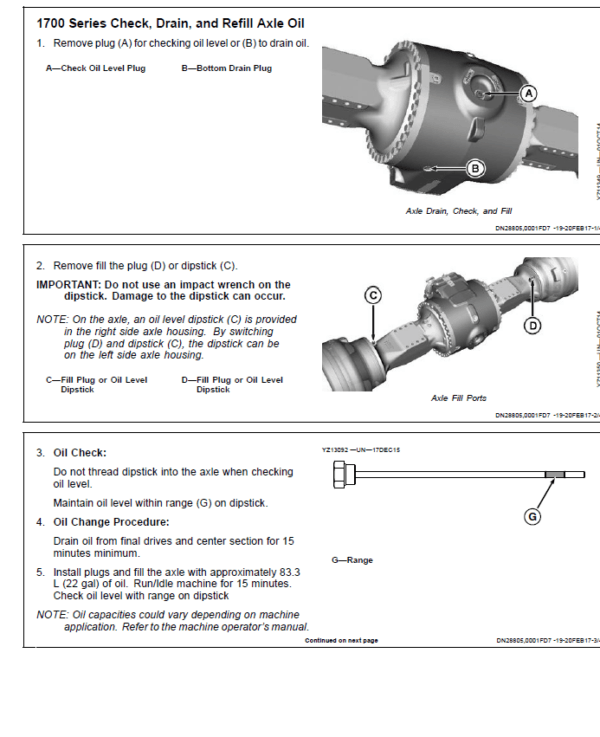

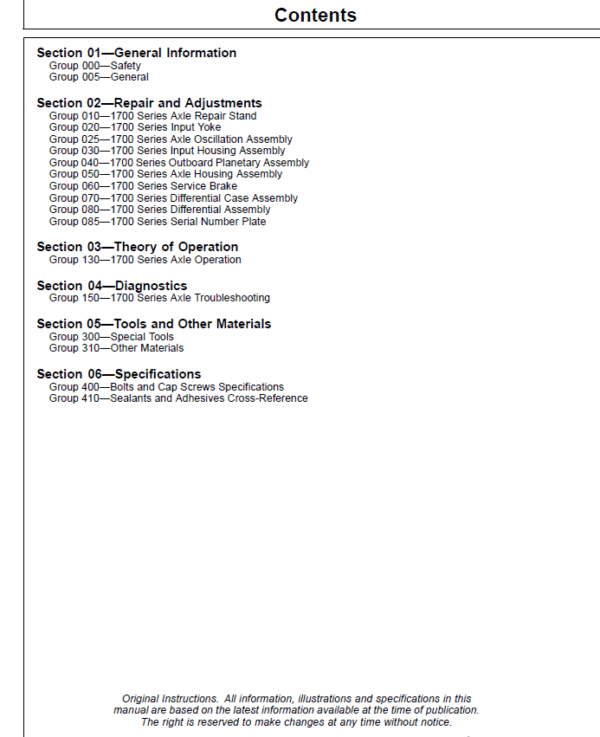

Table of Content of the TeamMate V 1700 Series Outboard Planetary Axles
Section 01—General Information
Group 000—Safety
Group 005—General
Section 02—Repair and Adjustments
Group 010—1700 Series Axle Repair Stand
Group 020—1700 Series Input Yoke
Group 025—1700 Series Axle Oscillation Assembly
Group 030—1700 Series Input Housing Assembly
Group 040—1700 Series Outboard Planetary Assembly
Group 050—1700 Series Axle Housing Assembly
Group 060—1700 Series Service Brake
Group 070—1700 Series Differential Case Assembly
Group 080—1700 Series Differential Assembly
Group 085—1700 Series Serial Number Plate
Section 03—Theory of Operation
Group 130—1700 Series Axle Operation
Section 04—Diagnostics
Group 150—1700 Series Axle Troubleshooting
Section 05—Tools and Other Materials
Group 300—Special Tools
Group 310—Other Materials
Section 06—Specifications
Group 400—Bolts and Cap Screws Specifications
Group 410—Sealants and Adhesives Cross-Reference
Group 000—Safety
Group 005—General
Section 02—Repair and Adjustments
Group 010—1700 Series Axle Repair Stand
Group 020—1700 Series Input Yoke
Group 025—1700 Series Axle Oscillation Assembly
Group 030—1700 Series Input Housing Assembly
Group 040—1700 Series Outboard Planetary Assembly
Group 050—1700 Series Axle Housing Assembly
Group 060—1700 Series Service Brake
Group 070—1700 Series Differential Case Assembly
Group 080—1700 Series Differential Assembly
Group 085—1700 Series Serial Number Plate
Section 03—Theory of Operation
Group 130—1700 Series Axle Operation
Section 04—Diagnostics
Group 150—1700 Series Axle Troubleshooting
Section 05—Tools and Other Materials
Group 300—Special Tools
Group 310—Other Materials
Section 06—Specifications
Group 400—Bolts and Cap Screws Specifications
Group 410—Sealants and Adhesives Cross-Reference
John Deere TeamMate V 1700 Series Outboard Planetary Axles Component Technical Manual
Use this component technical manual in conjunction with the machine technical manual. See the-machine technical manual for information on component removal and installation, and gaining access to-the components.
Information is organized in groups for the various components requiring service instruction. At the-beginning of each group are summary listings of all applicable essential tools, service equipment and-tools, other materials needed to do the job, service parts kits, specifications, wear tolerances, and-torque values.
This component technical manual covers the recommended repair procedure for the TeamMate V 1700 Series Outboard Planetary Axles.
Some components from these axles, such as axle housings, brakes, and input quills, may be serviced-without removing the complete axle assembly from the machine. You may have to determine this
procedure yourself for a safe removal of such components. See information to remove and install the-complete axle assembly, found in your vehicle technical manual.
