Komatsu WA180-3 Workshop Service Repair Manual
Description
Komatsu WA180-3 Workshop Service Repair Manual
This manual covers the following engine models:
4D95S-W-1
4D95S-W-1
4D95S-1
4D95L-W-1
4D95L-1
S4D95L-1
6D95L-1
S6D95L-1
SA6D95L-1
SAA6D95LE-1
Komatsu 95 series engine service manual
Komatsu WA180-3 operation and maintenance manual
Komatsu WA180-3 shop manual
PHP File – Platform: Indy
This collection contains the following products: Komatsu WA180-3 Operation Maintenance Pdf Manual

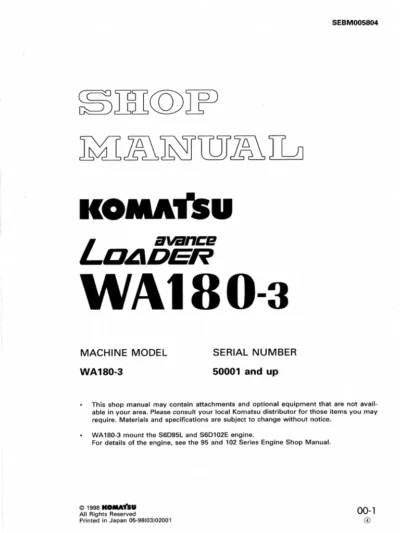

Komatsu WA180-3 shop manual. This is a factory manual, 549 pages.
serial number WA180-3 – 50001 and up
Komatsu WA180-3 operation and maintenance manual. This is a factory manual, 200 pages.
serial number
WA180-1 – 50001 and up
Komatsu 95 series engine service manual. This is a high quality 820-page engine workshop manual.
Komatsu WA180-3 Workshop Service Repair Manual
Specification
Engine
Make Komatsu
Model S6D102 E1
Gross Power 110 hp 82 kw
Power Measured @ 2400 rpm
Displacement 360 cu in 5.9 L
Number of Cylinders 6
Max Torque 307.6 lb ft 417 Nm
Aspiration Turbocharged
Operational
Operating Weight 20569.1 lb 9330 kg
Fuel Capacity 44.9 gal 170 L
Static Tipping Weight 17482.7 lb 7930 kg
Turning Radius 17.8 ft in 5430 mm
Operating Voltage 24 V
Alternator Supplied Amperage 35 amps
Rear Axle Oscillation 24 degrees
Tire Size 17.5 R25
Transmission
Type Fully automatic, full powershift with ‘kick-down’ system
Number of Forward Gears 4
Number of Reverse Gears 4
Max Speed – Forward 21.4 mph 34.5 km/h
Max Speed – Reverse 21.7 mph 35 km/h
Hydraulic System
Relief Valve Pressure 3045.8 psi 21000 kPa
Pump Flow Capacity 38 gal/min 144 L/min
Raise Time 5 sec
Dump Time 1.1 sec
Lower Time 2.5 sec
Bucket
Breakout Force 20952.2 lb 93.2 kN
Dump Clearance at Max Raise 8.5 ft in 2580 mm
Bucket Width 8.2 ft in 2500 mm
Bucket Capacity – heaped 2.1 yd3 1.6 m3
Dimensions
Length with Bucket on Ground 21.6 ft in 6590 mm
Width Over Tires 7.6 ft in 2310 mm
Height to Top of Cab 10.2 ft in 3095 mm
Ground Clearance 1.4 ft in 425 mm
Wheelbase 8.9 ft in 2700 mm
Hinge Pin – Max Height 11.6 ft in 3540 mm
Reach at Max Lift and Dump 3.6 ft in 1090 mm
