Volvo EC70 Specs

Volvo EC70 VV Excavator Service Parts Manual

Offering high-powered performance even in the worst possible conditions, with its powerful yet extremely quiet engine, this machine is equipped with the load-sensing system to give the operator perfect control when carrying out work. Its performance and reliability, as well as its many other qualities, will never cease to amaze you.

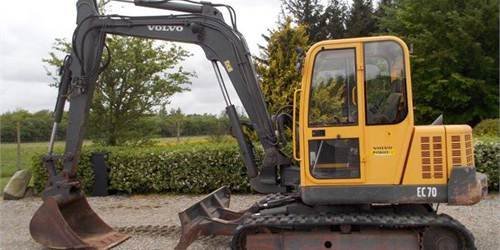

Thanks to its compact dimensions and the boom’s hydraulic offset, the Volvo EC70 is at ease in all site configurations, even alongside a wall.

Volvo EC70 Specs:

When it comes to heavy machinery, accurate dimensions are crucial for planning and operation. Here’s a breakdown of the dimensions for this particular equipment:

A. Shipping Length: 18.79 feet C. Shipping Height: 8.49 feet I. Max Cutting Height: 20.59 feet Max Loading Height: 14.84 feet Max Reach Along Ground: 21.14 feet Max Vertical Wall Digging Depth: 7.78 feet Max Digging Depth: 13.97 feet Boom/Stick Option (Hex): Boom 3100 mm / Stick 1800mm

These dimensions provide valuable insights into the size and capabilities of the equipment, helping operators and planners make informed decisions for their projects.

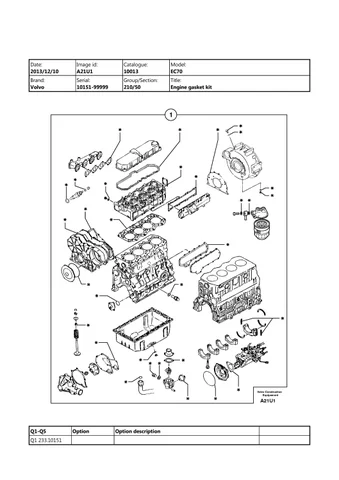

Service Parts Catalogue Manual Covers: Volvo EC70 Specs

01 General

02 Engine with Mounting and Equipment

03 Elec. System, Warning System, Information System, Instruments

04 Power Transmission

05 Frame and Tracks

06 Machinery House, Cab, Exterior Trim Parts Anywhere

07 Working Hydraulics, Servo Hydraulics

08 Mechanical Equipment, Attachment

09 Unit, Digging

10 Lubrication chart

The back cover opens completely, giving excellent access to the engine and hydraulic

pumps. All maintenance and checking points are conveniently located close to hand.

Volvo EC70 VV Compact Excavator Service Parts Catalogue Manual

The wrap-around shape of the counterweight protects the back of the machine

perfectly and makes it possible to work on the narrowest sites.

All the hydraulic hoses are sheathed and free of any friction or wear and are

connected at the bottom of the boom for very quick replacement, if necessary.

The boom is mounted on a double-swivel articulated pivot which enables a long pin

to be mounted and provides greater rigidity in the boom-chassis link. The boom

cylinder’s rod is fully protected against any knocks by sturdy armouring.

Volvo EC70 VV Excavator Service Catalogue Manual
