Takeuchi Excavator Tb025 Workshop Parts Manual

Description

TAKEUCHI Excavator Tb025 Workshop Parts Manual

Takeuchi Tb36 Operators Manual Parts Manual

Clear/crisp viewing!
FULL VERSION!!!
File Format: PDF
Compatible: All Versions of Windows & Mac & Linux
Printable: Yes
Requirements: Adobe PDF Reader
EASY TO UNDERSTAND AND NAVIGATE

TAKEUCHI Excavator Tb025 Workshop Parts Manual

Specification:

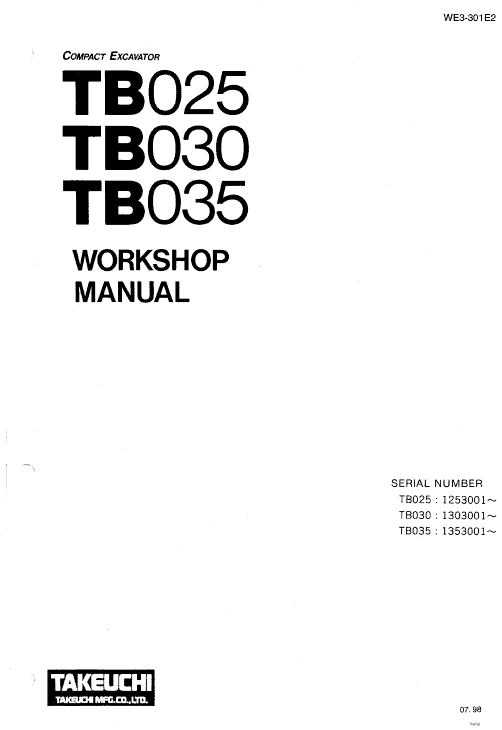

Table of Content of TB025, TB030 and TB035 Instructions Manual:

I . GENERAL
II . SPECIFICATIONS
III. MACHINE CONFIGURATION
IV. HYDRAULIC UNITS
V . TROUBLESHOOTING
VI. ENGINE

Specs:

Engine

Make Yanmar
Gross Power 26 hp 19.4 kw
Power Measured @ 2450 rpm
Displacement 91.3 cu in 1.5 L
Number of Cylinders 3
Operational
Operating Weight 5958lb 2702.5 kg
Fuel Capacity 7.6 gal 28.8 L
Hydraulic System Fluid Capacity 21.7 gal 82.1 L
Hydraulic System Relief Valve Pressure 2845 psi19615.6 kPa
Hydraulic Pump Flow Capacity 12.6 gal/min 47.7 L/min
Swing Mechanism
Swing Speed 10 rpm
Undercarriage
Shoe Size 12 in 304.8 mm
Number of Track Rollers per Side 3
Boom/Stick Option (HEX) 1
Max Digging Depth 8.5 ft in 2590.8 mm
Max Reach Along Ground 14.6 ft in 4444 mm
Max Cutting Height 13.4 ft in 4090.4 mm
Max Loading Height 9.4 ft in 2871.2 mm
Max Vertical Wall Digging Depth 6.4 ft in 1956.8 mm
Dimensions
Width to Outside of Tracks 4.8 ft in 1447.8 mm
Height to Top of Cab 7.9 ft in 2414 mm
Ground Clearance 1 ft in 304.8 mm
Tail Swing Radius 4.3 ft in 1295.4 mm
Length of Track on Ground 4.6 ft in 1396 mm

TAKEUCHI Excavator Tb025 Workshop Parts Manual
