John Deere PowerTech 4.5L, 6.8L Diesel Engine Technical Manual

John Deere PowerTech 4.5L, 6.8L Diesel Engine Technical Manual

READ THIS MANUAL carefully to learn how to service your  John Deere PowerTech 4.5L, 6.8L Diesel Engine Manual correctly.

Language: English

Format: PDF

Publication: CTM170

Applicable for the Engines Model: PowerTech 4.5L, 6.8L OEM Diesel Engines Level 4 Electronic Fuel Systems With

Bosch VP44 Pump

• John Deere PowerTech 4.5L, 6.8L Diesel Engine Technical Manual (CTM170) – 608 Pages

Applicable Models

John Deere PowerTech 4.5L, 6.8L Diesel Engine Technical Manual

Table of Content of the John Deere PowerTech 4.5L, 6.8L Diesel Engine Manual

Section 01—General

Group 000—Safety

Group 001—Engine Identification

Group 002—Fuels

Section 02—Repair and Adjustments

Group 090—Electronic Fuel System Repair and

Adjustments

Group 110—Electrical Engine Control Repair and

Adjustment

Section 03—Theory of Operation

Group 130—Electronic Fuel System Operation

Group 140—Electronic Control System Operation

Section 04—Diagnostics

Group 150—Observable Diagnostics and Tests

Group 160—Trouble Code Diagnostics and Tests

Section 05—Tools and Other Materials

Group 170—Special Tools

Group 180—Lubricants, Sealants, and Other Materials

Section 06—Specifications

Group 200—Repair Specifications

Group 210—Diagnostic Specifications

READ THIS MANUAL carefully to learn how to service your  John Deere PowerTech 4.5L, 6.8L Diesel Engine Manual correctly.

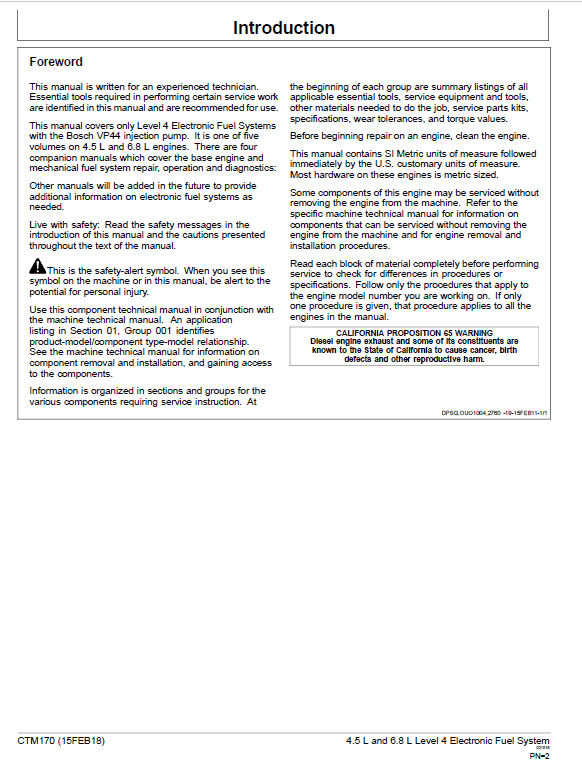

This manual is written for an experienced technician. Essential tools required in performing certain service work are identified in this manual and are recommended for use. This manual covers only Level 4 Electronic Fuel Systems with the Bosch VP44 injection pump. It is one of five volumes on 4.5 L and 6.8 L engines.

There are four companion manuals which cover the base engine and mechanical fuel system repair, operation and diagnostics: Other manuals will be added in the future to provide additional information on electronic fuel systems as needed. Live with safety: Read the safety messages in the introduction of this manual and the cautions presented throughout the text of the manual.Use this component technical manual in conjunction with the machine technical manual. An application listing in Section 01, Group 001 identifies product-model/component type-model relationship.

See the machine technical manual for information on component removal and installation, and gaining access to the components.Information is organized in sections and groups for the various components requiring service instruction. At the beginning of each group are summary listings of all applicable essential tools, service equipment and tools, other materials needed to do the job, service parts kits, specifications, wear tolerances, and torque values.

Before beginning repair on an engine, clean the engine.This manual contains SI Metric units of measure followed immediately by the U.S. customary units of measure. Most hardware on these engines is metric sized.Some components of this engine may be serviced without removing the engine from the machine. Refer to the specific machine technical manual for information on components that can be serviced without removing the engine from the machine and for engine removal and installation procedures.

Read each block of material completely before performing service to check for differences in procedures or specifications. Follow only the procedures that apply to the engine model number you are working on. If only one procedure is given, that procedure applies to all the engines in the manual.

John Deere PowerTech 4.5L, 6.8L Diesel Engine Technical Manual
