JD 693B Feller Buncher Service Manual

Technical Manuals or Service Manuals for actual service

The JD 693B Feller Buncher Service Manual give you both the general background and technical details of shop service. Fundamentals of Service Manuals cover basic theory of operation, fundamentals of troubleshooting, general maintenance, and basic types of failures and their causes.

This Service Manual was planned and written in such a way it is made easy to repair your equipment. Refer to it when you need to know correct service procedures or specifications. Using the Service Manual as a guide will reduce error and costly delay. It will also assure you the best in finished service work.

This manual includes illustrations like pictures and diagrams which you can help you determine the installation location spare parts, etc.

JD 693B Feller Buncher Service Manual Contents:

• I – GENERAL INFORMATION

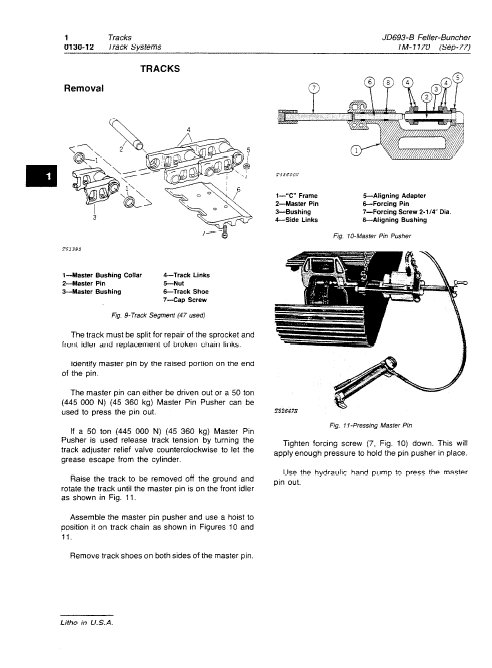

• 1 – TRACKS
• 2 – AXLES AND SUSPENSION SYSTEMS
• 4 – ENGINE
• 5 – ENGINE AUXILIARY SYSTEM
• 16 – ELECTRICAL SYSTEMS
• 17 – FRAME, CHASSIS OR SUPPORTING STRUCTURE
• 18 – OPERATOR’S STATION
• 19 – SHEET METAL AND STYLING
• 20 – SAFETY, CONVENIENCE AND MISCELLANEOUS
• 33 – BACKHOE AND EXCAVATOR
• 39 – SHEAR
• 43 – SWING, ROTATION OR PIVOTING SYSTEM
• 90 – SYSTEM TESTING

If you are interested in any other models of JD Service Manual click here.
